| Color |
| Selling Units: | Piece/Pieces |
|---|
Productivity: 1000000Sets/Year
Transportation: Ocean,Land,Air
Place of Origin: Guangdong,China
Supply Ability: 1000000Sets/Year
Certificate: CE, ISO9001, CCC, CB, RoHS, Keymark, Sg-Ready, Bafa
HS Code: 8418612010
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW

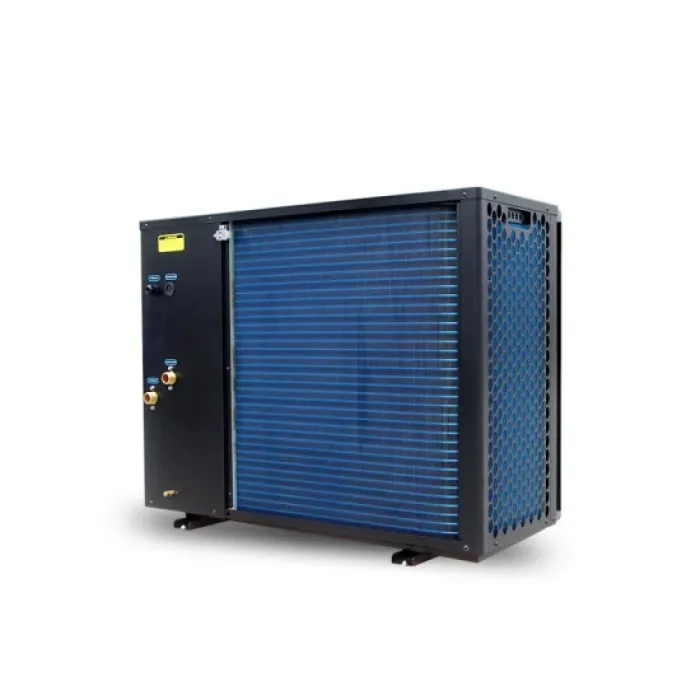

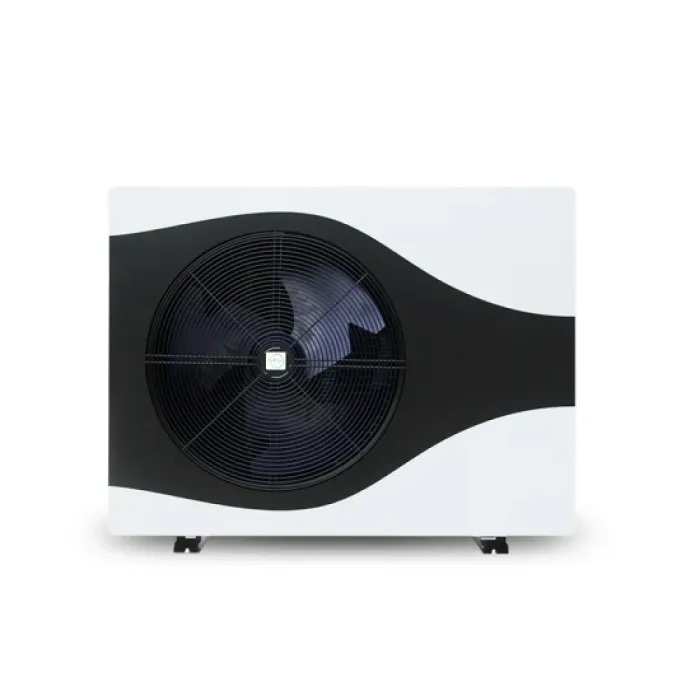

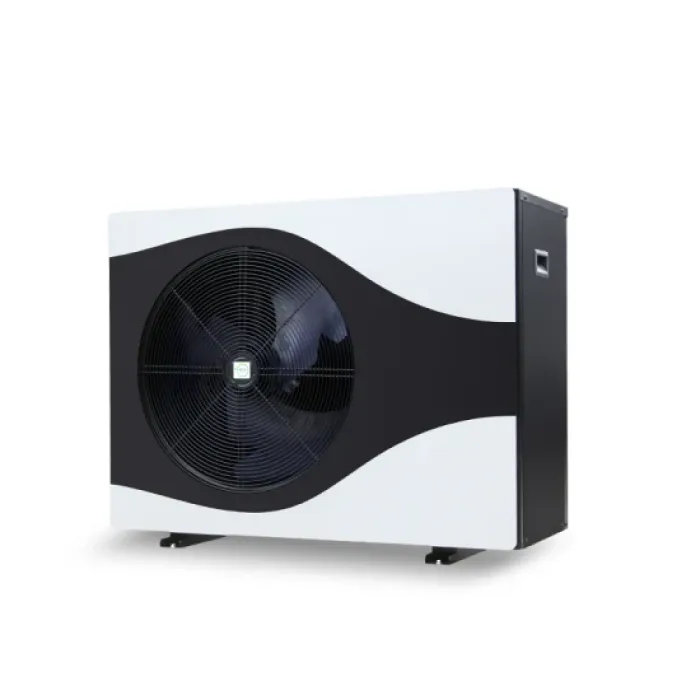

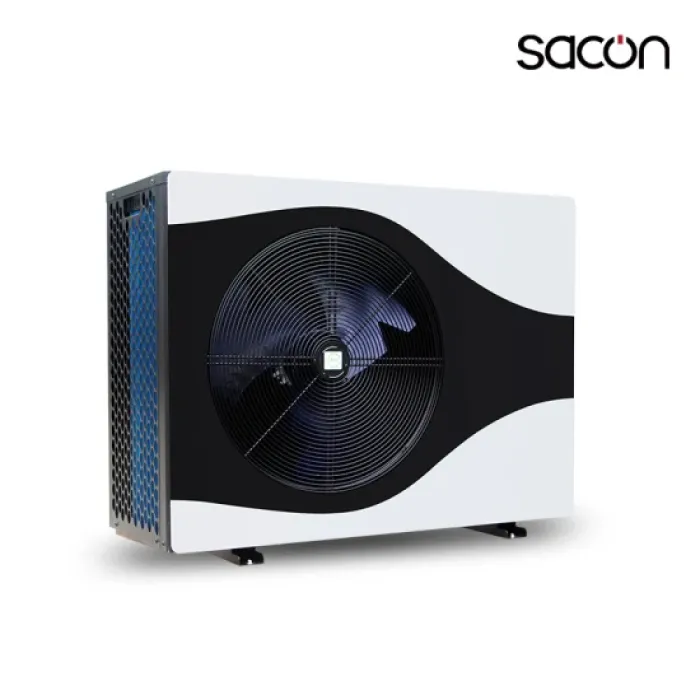

R32 inverter EVI monoblock A+++ air source heat pump for residential heating, cooling, and sanitary hot water.
*R32 EVI inverter compressor stable operation at -25ºC, for space central heating and domestic hot water use.
*Installation for business, We also provide technical support.

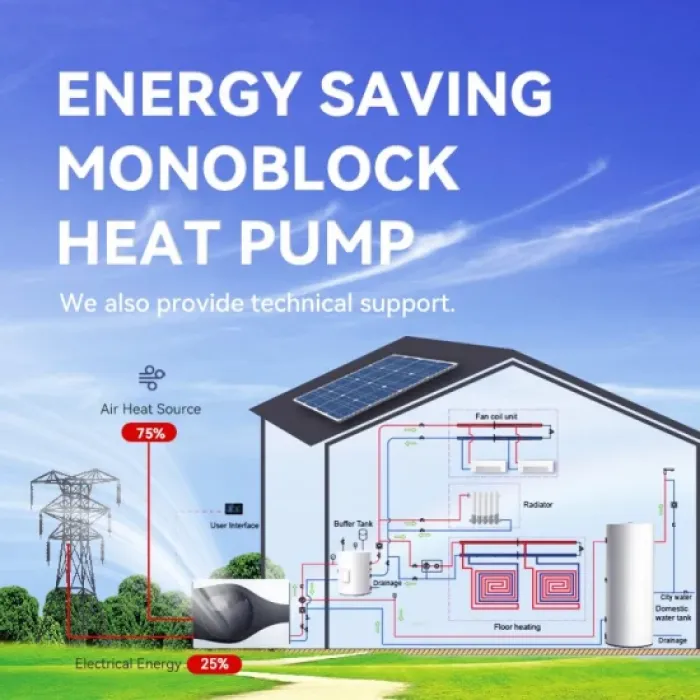

Based on a monoblock air-to-water heat pump, it catches heat energy from the ambient air and transfers it to warm/cool your home and supply sanitary hot water, up to 75% energy saving from our heat pump.
*Heating in winter,Cooling in summer, and sanitary hot water throughout the year, this three-in-one function satisfactorily meets people's Daily needs.
*Environmental Friendly--R32 refrigerant,GWP=675,Only 1/3 of the R410A ;
*High efficiency A+++ level-- Its energy efficiency grade can reach A+++ at 35°C, A++ at 55°C.
*The DC Inverter EVI air-to-water heat pump operates reliably at extreme temperatures of -25°C
*Smart life:WiFi/APP connect/5-inch TFT true color screen,RS485 smart grid.
Efficient IoT solution:
customer management platform can effectively save labor costs for dealers. It can be connected with WIFI or DUT to realize remote monitoring of data record all the operating parameters of the units and synchronize it to the management background of dealers and manufacturers.
*Connect solar panels to PV system for more energy efficient, environmentally friendly, and save money and time.
*Usage scenarios, meet the needs of daily life.
| Model | BLN-006TB1 | BLN-010TB1 | BLN-014TB1 | BLN-018TB1 | ||
| Power supply | 220-240V~ / 50Hz | 220-240V~ / 50Hz | 220-240V~ / 50Hz | 220-240V~ / 50Hz | ||
| Heating¹ (A7/6ºC,W30/35ºC) | Heating Capacity | kW | 2.50-8.30 | 4.20~12.20 | 5.30~16.50 | 6.20-20.50 |
| Power Input | kW | 0.57-1.92 | 0.86~2.88 | 1.15-4.15 | 1.36-5.28 | |
| Current Input | A | 2.53-8.52 | 3.82~12.77 | 5.10~18.41 | 6.10-23.67 | |
| COP | w/w | 4.32~5.86 | 4.23~5.39 | 3.97~5.43 | 3.88~5.21 | |
| Heating² (A7/6ºC,W47/55ºC) | Heating Capacity | kW | 2.30-7.62 | 3.85~11.20 | 4.90~15.10 | 6.30-19.90 |
| Power Input | kW | 0.75-2.61 | 1.13~3.75 | 1.65~5.25 | 1.65-6.82 | |
| Current Input | A | 3.32-11.58 | 5.01~16.6 | 7.32~23.30 | 7.40-30.56 | |
| COP | w/w | 2.92~3.33 | 2.99~3.46 | 2.87~3.38 | 2.91~3.34 | |
| Cooling (A35/24ºC,W12/7ºC) | Cooling Capacity | kW | 1.80-7.10 | 2.60~10.30 | 4.50-13.50 | 5.50-17.50 |
| Power Input | kW | 0.61-2.43 | 0.91~3.65 | 1.45-4.85 | 1.65-6.25 | |
| Current Input | A | 2.71~10.78 | 4.03~16.19 | 6.43~21.52 | 7.40-28.02 | |
| ERP level(out water temp. at 35ºC) | / | A+++ | A+++ | A+++ | A+++ | |
| Max. Input Power | kW | 2.71 | 3.83 | 6.20 | 7.5 | |
| Max. Input Current | A | 12 | 17 | 27.50 | 35.0 | |
| Refrigerant Type/Charge/GWP | .../kg | R32/1.25/675 | R32/1.8/675 | R32/2.8/675 | R32/3.5/675 | |
| fan quality | / | 1 | 1 | 1 | 2 | |
| IP Class | / | IPX4 | IPX4 | IPX4 | IPX4 | |
| Max. Outlet Water Temp. | ºC | 60 | 60 | 60 | 60 | |
| Operating Ambient Temp. | ºC | -25~45 | -25~45 | -25~45 | -25~45 | |
| Water Piping Connections | / | G1 | G1 | G1-1/4 | G1-1/2 | |
| Rated Water Flow | m³/h | 1.1 | 1.75 | 2.52 | 3.20 | |
| Water Pressure Drop | kPa | 25 | 27 | 30 | 32 | |
| Noise Level | dB(A) | 49 | 52 | 53 | 56 | |
| Product Dimensions ( L×W×H ) | mm | 1100*445*850 | 1100*445*850 | 1110*480*850 | 1110*445*1450 | |
| Packed Dimensions() | mm | 1160*530*1010 | 1160*530*1010 | 1160*565*1010 | 1170*530*1610 | |
| Product Weight | kg | 102 | 107 | 124 | 151 | |
| Packed Weight | kg | 114 | 119 | 136 | 168 | |
| Model | BLN-010TB3 | BLN-014TB3 | BLN-018TB3 | BLN-024TB3 | ||
| Power supply | V/PH/HZ | 380~415V /3/ 50Hz | 380~415V /3/ 50Hz | 380~415V /3/ 50Hz | 380~415V /3/ 50Hz | |
| Heating¹ (A7/6ºC,W30/35ºC) | Heating Capacity | kw | 4.20~12.20 | 5.30~16.50 | 6.20-20.50 | 6.50~26.10 |
| Power Input | kW | 0.86~2.88 | 1.15-4.15 | 1.36-5.28 | 1.78~6.45 | |
| Current Input | A | 1.46~4.89 | 1.86~6.70 | 2.31-8.96 | 2.87~10.35 | |
| COP | w/w | 4.23~5.39 | 3.97~5.43 | 3.88~5.21 | 4.04~5.43 | |
| Heating² (A7/6ºC,W47/55ºC) | Heating Capacity | 3.85~11.20 | 4.90~15.10 | 6.30-19.90 | 6.90~26.10 | |
| Power Input | kW | 1.13~3.75 | 1.65~5.25 | 1.65-6.82 | 1.95~8.55 | |
| Current Input | A | 1.92~6.37 | 1.67~8.47 | 2.80-11.58 | 3.15~13.80 | |
| COP | w/w | 2.99~3.46 | 2.87~3.38 | 2.91~3.34 | 3.05~3.42 | |
| Cooling (A35/24ºC,W12/7ºC) | Cooling Capacity | 2.60~10.30 | 4.50-13.50 | 5.50-17.50 | 5.20~21.30 | |
| Power Input | kW | 0.91~3.65 | 1.45-4.85 | 1.65-6.25 | 1.95~8.20 | |
| Current Input | A | 1.55~6.20 | 2.34~7.82 | 2.80-10.61 | 3.15~13.23 | |
| ERP level(out water temp. at 35ºC) | / | A+++ | A+++ | A+++ | A+++ | |
| Max. Input Power | kW | 3.83 | 6.20 | 7.50 | 10.00 | |
| Max. Input Current | A | 65 | 10.50 | 13.00 | 17.00 | |
| Refrigerant Type/Charge/GWP | .../kg | R32/1.8/675 | R32/2.8/675 | R32/3.5/675 | R32/3.5/675 | |
| fan quality | / | 1 | 1 | 2 | 2 | |
| IP Class | / | IPX4 | IPX4 | IPX4 | IPX4 | |
| Max. Outlet Water Temp. | ºC | 60 | 60 | 60 | 60 | |
| Operating Ambient Temp. | ºC | -25~45 | -25~45 | -25~45 | -25~45 | |
| Water Piping Connections | / | G1 | G1-1/4 | G1-1/2 | G1-1/2 | |
| Rated Water Flow | m³/h | 1.75 | 2.52 | 3.20 | 4.12 | |
| Water Pressure Drop | kPa | 27 | 30 | 32 | 35 | |
| Noise Level | dB(A) | 52 | 54 | 55 | 58 | |
| Product Dimensions ( L×W×H ) | mm | 1100*445*850 | 1110*480*850 | 1110*445*1450 | 1110*445*1450 | |
| Packed Dimensions() | mm | 1160*530*1010 | 1160*565*1010 | 1170*530*1610 | 1170*530*1610 | |
| Product Weight | kg | 107 | 124 | 151 | 160 | |
| Packed Weight | kg | 119 | 136 | 168 | 177 | |
Sacon HVAC, several Solareast, which is a prominent player in the energy sector, operates five state-of-the-art production bases across China. Among them, located in Shunde, Guangdong, specializes in the production of air source heat pumps.
Spanning over 100,000 square meters, we have invested USD 2 million in the construction of advanced testing laboratories. These cutting-edge facilities enable us to rigorously test machines up to 300kW, even in the harshest cold climates, with temperatures as low as -30°C.
Moreover, Solareast Heat Pump Ltd. has received prestigious certifications such as ISO9001, ISO14001, and ISO18001, and our products have gained approval from BAFA, CE, Rohs, MCS, KEYMARK, CB, SAA, and ErP, among others.
With more than a decade of experience in air source heat pump technology, Solareast Heat Pump Ltd. stands at the forefront of providing sustainable and highly efficient thermal energy solutions.
We have five Industrial Parks and zero-carbon solutions for sustainable living with household solar water heaters, heat pumps, kitchen appliances, and water purifiers.
Q1 Are you a manufacturer?
Answer: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC inverter heat pumps, air source heat pumps water heaters, all-in-one heat pumps, swimming pool heat pumps, EVI heat pumps, and commercial in low temp. areas.
